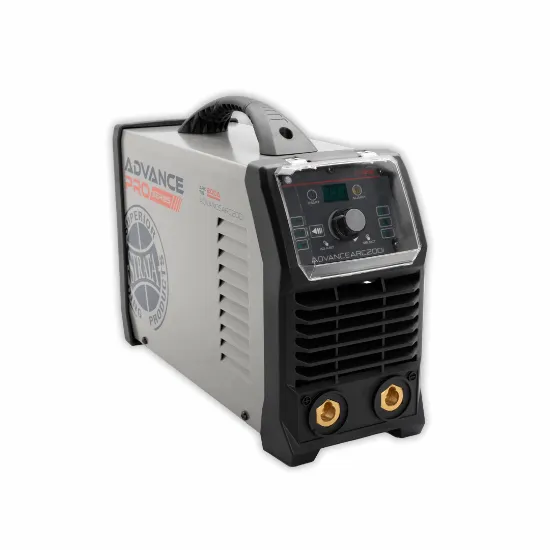

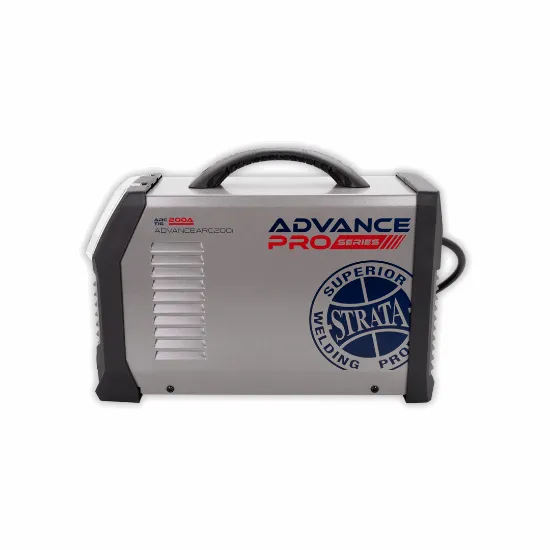

Strata 200A AdvanceArc Inverter Welder
For those who demand more - the AdvanceArc 200i delivers!
Take your welding skills to the next level with the ultimate welding versatility of the Strata Advance Arc 200A ARC / Lift TIG Inverter Welder! This powerful machine features a Multi Voltage Input system, comprehensive protection modes, and a digital current display for precise control.
It’s not just a tool but a powerhouse for professional welders looking for reliability and performance in diverse environments.
With a potent 200A output and Active PFC Technology for superior efficiency, this welder tackles the toughest jobs with ease.
Features:
Max Output (Arc) - 200A
Max Electrode Size - 5.0mm
Power Input - 15A / 230V
IGBT Inverter technology for smooth & stable welding output.
Equipped with Active PFC - Multi-voltage technology, giving you piece of mind when using with generators or long extension cords.
Increased safety with VRD protection mode.
Microprocessor control system with superior and dynamic arc characteristics
Lightweight & compact design for portable applications.
Extreme stress tested in production up to 440V, ensuring rugged reliability.
Adjustable arc force and hot start enable good control and ease of use when MMA welding.
Lift TIG welding operation for precision in aesthetically important welding jobs (torch optional).
Accurate pre-setting and feedback of welding parameters and output with digital current display meter.
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety.
Durable and reliable guaranteed with high quality and over specified electronic components.
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion.
Accessories:

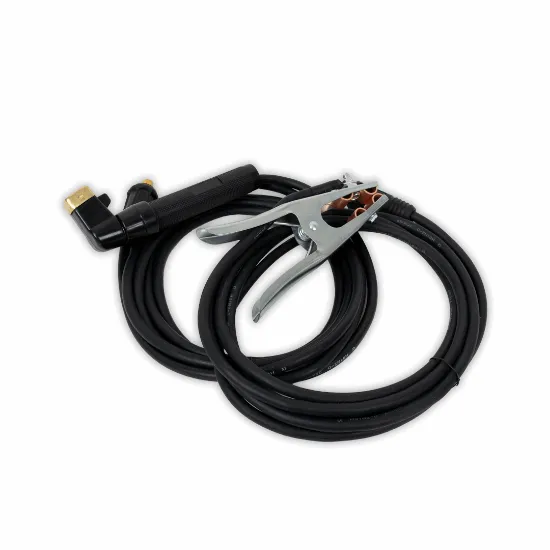

4m Arc lead
4m Earth lead
48 Month Warranty
Model: AdvanceArc 200i
Specifications:
| Input Power Supply | 230V AC 15A 50/60Hz |
| Input Power Tolerance | 200-260V |
| Maximum Input Current | 31.1AA |
| Generator Capacity | 8KVA |
| MMA Current Output | 10-200A |
| MMA O/C Voltage | 65V / 14.5V (Limited) |
| MMA/TIG Duty Cycle |
200A @ 25%, 165A @ 60%, 130A @ 100% |
| Lift Tig Current Output | 10 - 200A |
| Lift Tig Duty Cycle |
200A @ 35% 160A @ 60% 130A @ 100% |
| Insulation Class | IP23 |
| Power Efficiency | 85% |
| Power Factor | 0.99 |
| MMA Rod Size: | 1.6 - 5.0mm |
| Standards | AS/IEC60974-1:2012 |
| Dimensions: | 410 x 146 x 278 |
| Weight: | 6.1kgs |
All Prices Include GST
